iTECH CVY-A500 High Quality PCB Handling Equipment PCB Conveyor
iTECH CVY-A500 High Quality PCB Handling Equipment PCB Conveyor

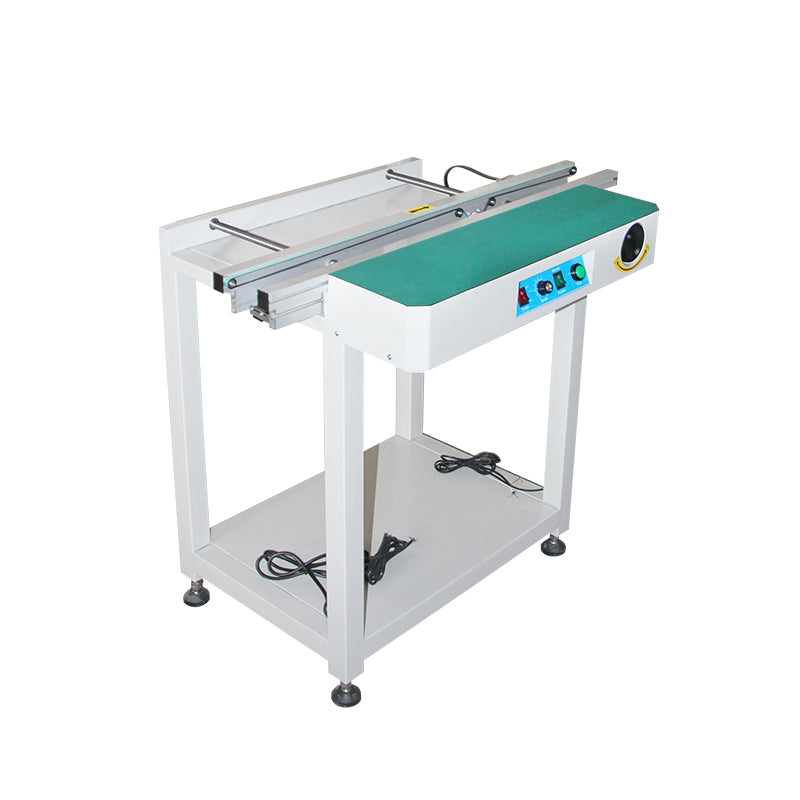

CVY-A500 / without Light Shelf
Factory
NO.1,Shanha Road Nanming Mountain Street, Liandu District, Li Shui Shi
323000 Zhejiang
China
Factory Wenzhou
6/F, International Chamber of Commerce Building, Renhui Road, Ouhai District Wenzhou
325000 Zhejiang
China
PCB BUFFER BELT BOARD STACKER CONVEYOR SMT FLIPPER INVERTER ASSEMBLY EQUIPMENT PCB INSPECTION CONVEYOR TABLE

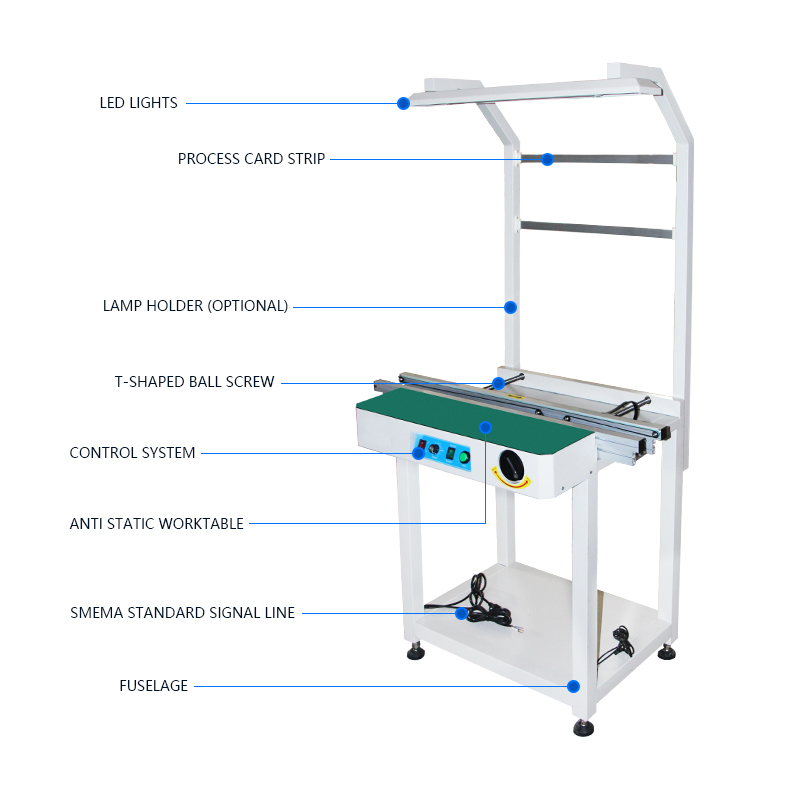

iTECH SMT conveyor adopts the sturdy aluminum profile design and the thickening of the fuselage to improve the stability of the whole machine, and it will not be deformed for a long time. The precision screw adjustment seat makes the parallel width adjustment smoother. Modular design and user-friendly interface, easy to use. SMEMA standard signal cable that can be used directly with other devices. Applicable to the connection between SMT automatic production line equipment, can also increase the feasibility of special process locations.
- Thickened special aluminum profiles
- Double stepper motor drive
- Ball Screw
- Easy to operate
Model: CVY-A500
Voltage: AC 220V, 50Hz
Conveyor Length: 500mm
Conveyor Width Adjustable: 50-350mm
Net Weight: 41kgs
Gross Weight: 66kgs

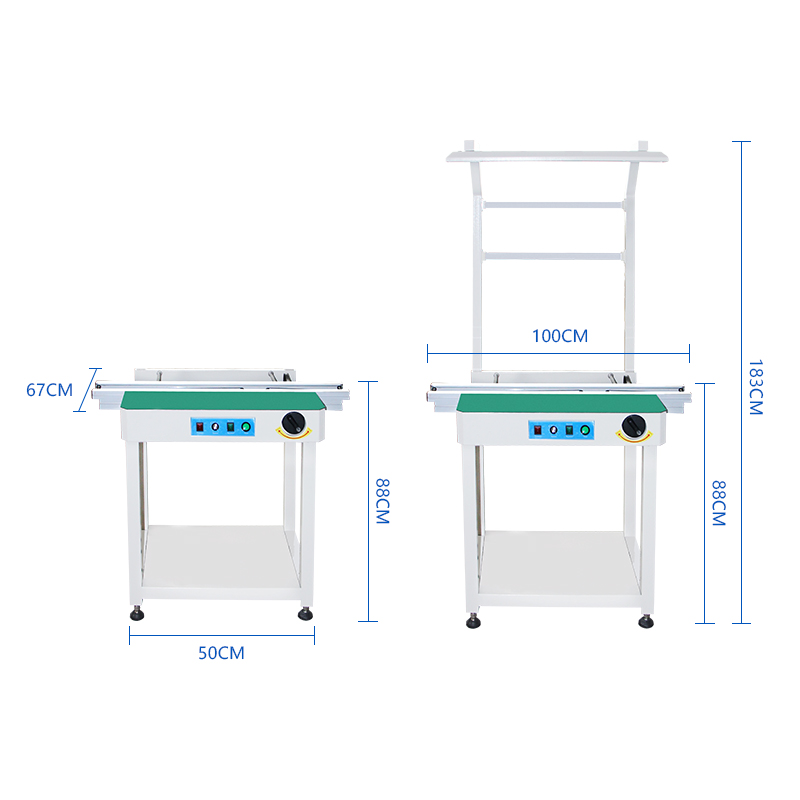

Machine Size: L500×W670×H900mm
Package Dimension: 1050*770*625mm
Model: CVY-A600
Voltage: AC 220V, 50Hz
Conveyor Length: 600mm
Conveyor Width Adjustable: 50-350mm
Net Weight: 43kgs
Gross Weight: 70kgs
Machine Size: L600×W670×H900mm
Package Dimension: 1150*770*625mm
Model: CVY-A800
Voltage: AC 220V, 50Hz
Conveyor Length: 800mm
Conveyor Width Adjustable: 50-350mm
Net Weight: 48kgs
Gross Weight: 75kgs
Machine Size: L800×W670×H900mm
Package Dimension: 1100*900*1050mm
Model: CVY-A1000
Voltage: AC 220V, 50Hz
Conveyor Length: 1000mm
Conveyor Width Adjustable: 50-350mm
Net Weight: 49kgs
Gross Weight: 100kgs
Machine Size: L800×W670×H900mm
Package Dimension: 1100*900*1050mm
Model: CVY-A1200
Voltage: AC 220V, 50Hz
Conveyor Length: 1200mm
Conveyor Width Adjustable: 50-350mm
Net Weight: 50kgs
Gross Weight: 100kgs
Machine Size: L1200×W670×H900mm
Package Dimension: 1350*900*1050mm
Model: CVY-A1500
Voltage: AC 220V, 50Hz
Conveyor Length: 1500mm
Conveyor Width Adjustable: 50-350mm
Net Weight: 55kgs
Gross Weight: 110kgs
Machine Size: L1500×W670×H900mm
Package Dimension: 1550*900*1050mm
