INFRARED IC HEATER REFLOW SOLDERING MACHINE FOR PCB PROTOTYPING

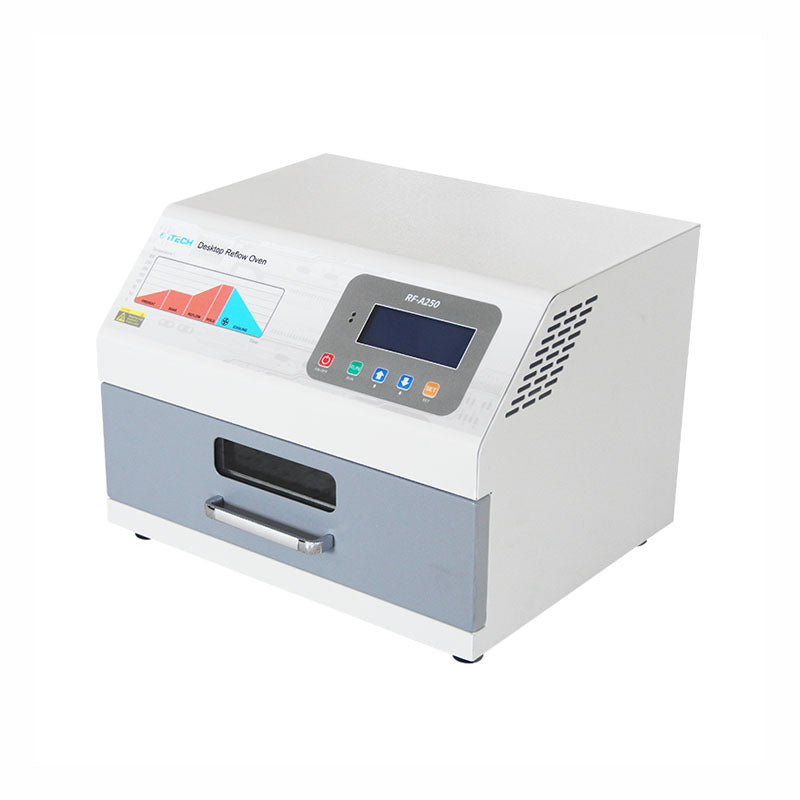

The infrared IC heater reflow oven RF-A200 is a microprocessor-controlled reflow oven that you can use for effectively soldering various SMD and BGA components. The whole soldering process can be completed automatically and it is very easy to use. This machine uses a powerful infrared emission, the temperature is being kept very accurate and evenly distributed.

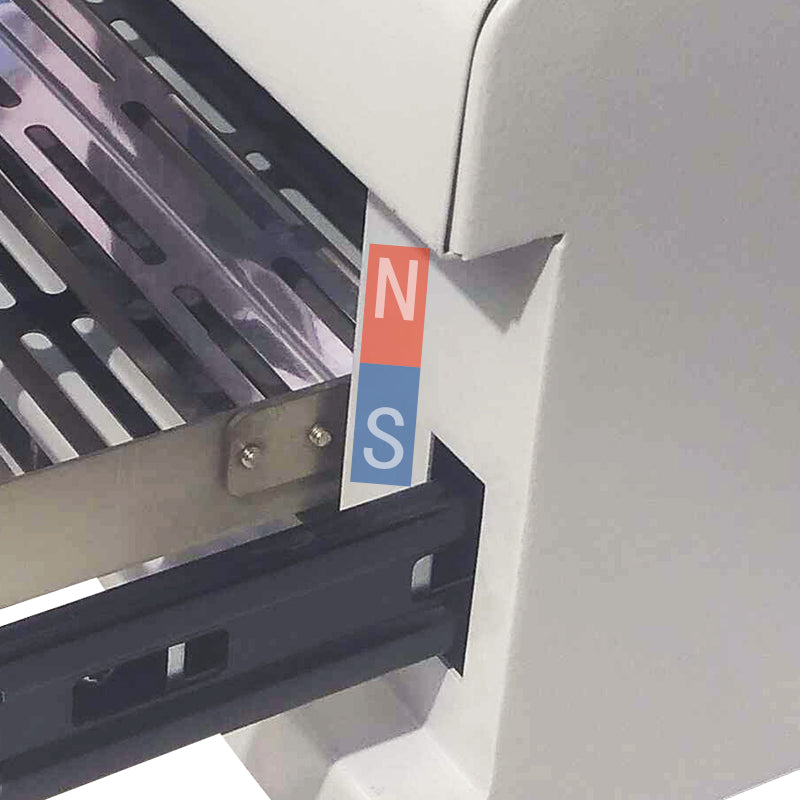

A windowed drawer is designed to hold the work-piece, and allows safe soldering techniques and the manipulation of SMD, BGA and other small electronic parts mounted on a PCB assembly. The RF-A200 may be used to automatically rework solder to correct bad solder joints, remove / replace bad components and complete small engineering models or prototypes.
- With pre-loaded Sn63/Pb37 leaded and Sn42Bi58 lead-free profiles
- Save Max. 4 groups temperature profiles

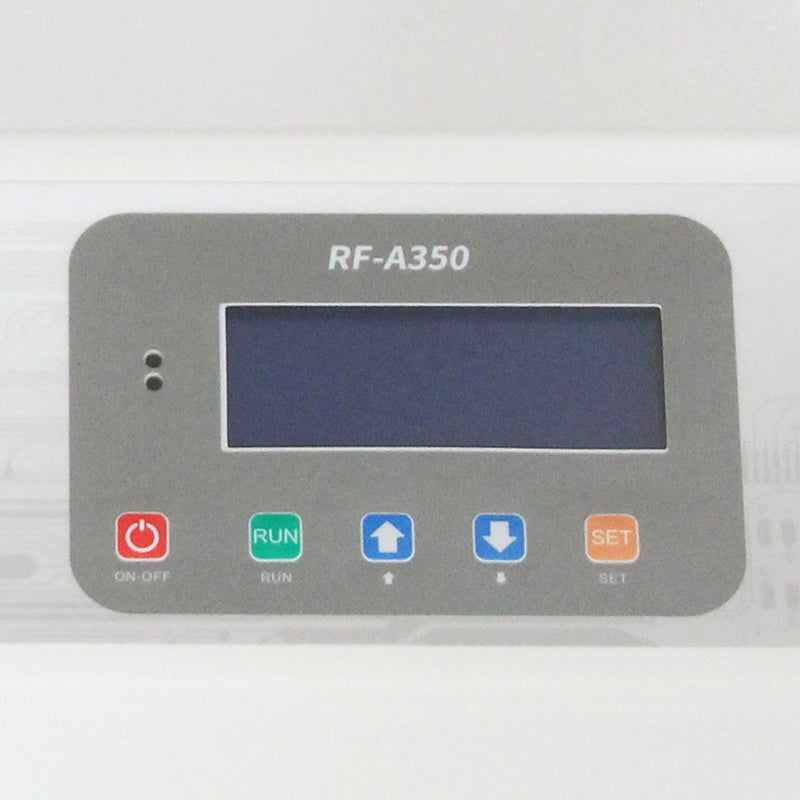

- LCD screen

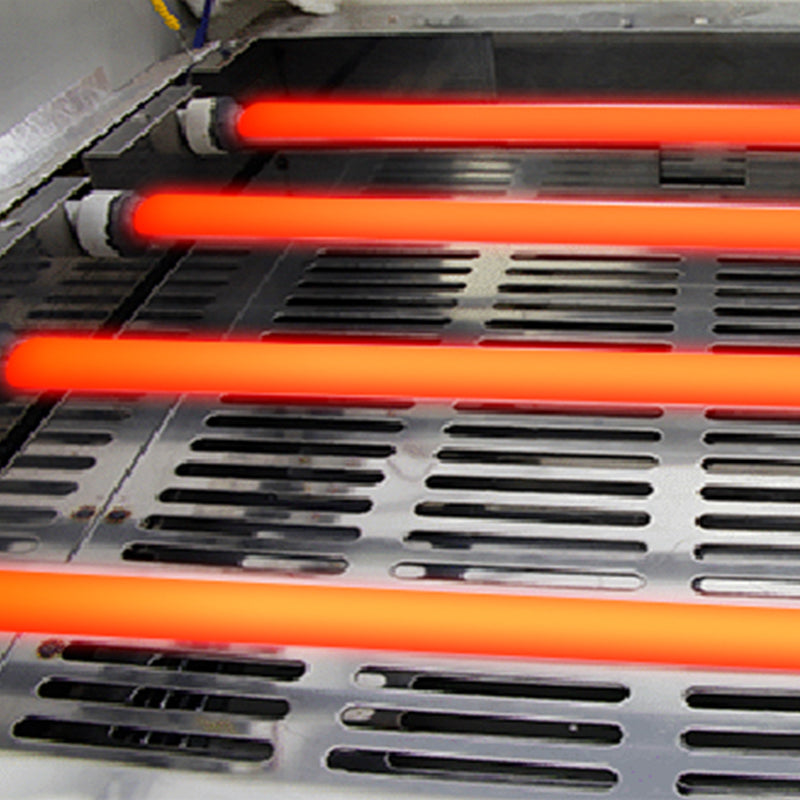

- Infrared heating tube

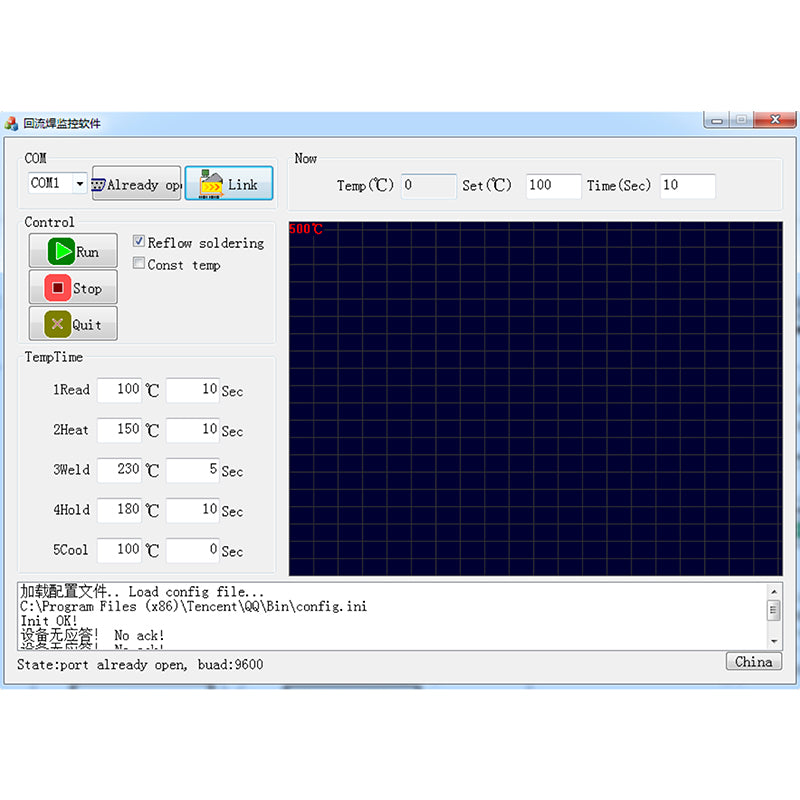

- Support PC on line operate
- Wide soldering area

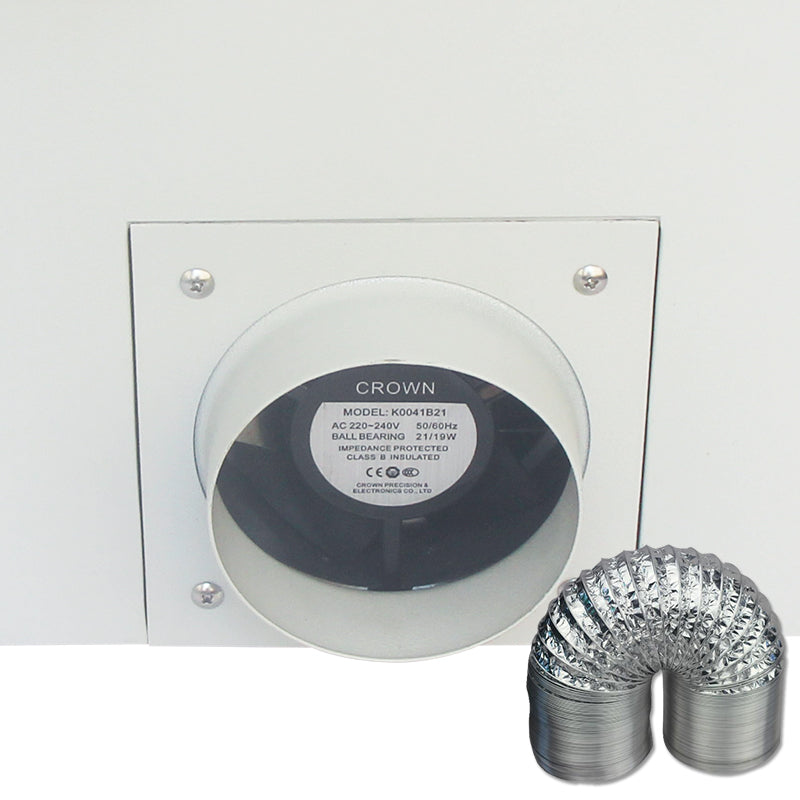

- Excellent smoke vent
- Automatic soldering control
- Portable, space-saving
- Universal oven for heating and moisture removing purpose
Attention:
Model: RF-A200
Voltage: AC220V, 50Hz
Power: 700W
Heating Method: Infrared Radiation Heating
Effective Welding Area: 200*150mm
Drawer size: L250*W180*H20mm

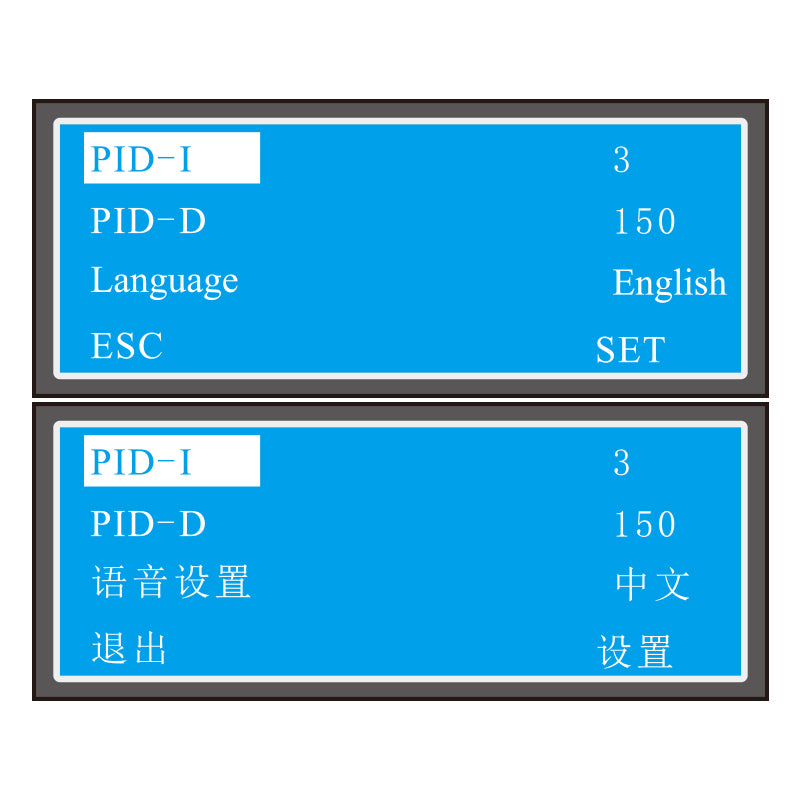

Display Mode: Graph Mode or Text Mode for option
Temperature Range: 0℃-280℃
Temperature Curve Zones: Preheated Zone, Heating Zone, Soldering Zone, Thermos Zone and Cooling Zone
Net Weight: 13.5kgs
Gross Weight: 16kgs
Machine Size: L375×W350×H312mm
Package Dimension: 450*410*385mm
