Solder Paste Storage Cabinet with FIFO Fixture

Solder paste is a material used for electronic soldering, mainly composed of solder powder and flux. In order to maintain its good soldering performance, solder paste usually needs to be stored in a refrigerator. Low temperature environment can effectively slow down the volatilization and chemical reaction of the flux, prevent the solder paste from oxidizing, drying or stratifying, thereby extending its service life. If stored at room temperature for a long time, the solder paste may lose its viscosity and activity, affecting the welding quality. It should be warmed up in advance before use to avoid moisture absorption and condensation, so as to ensure stable and reliable soldering effect.

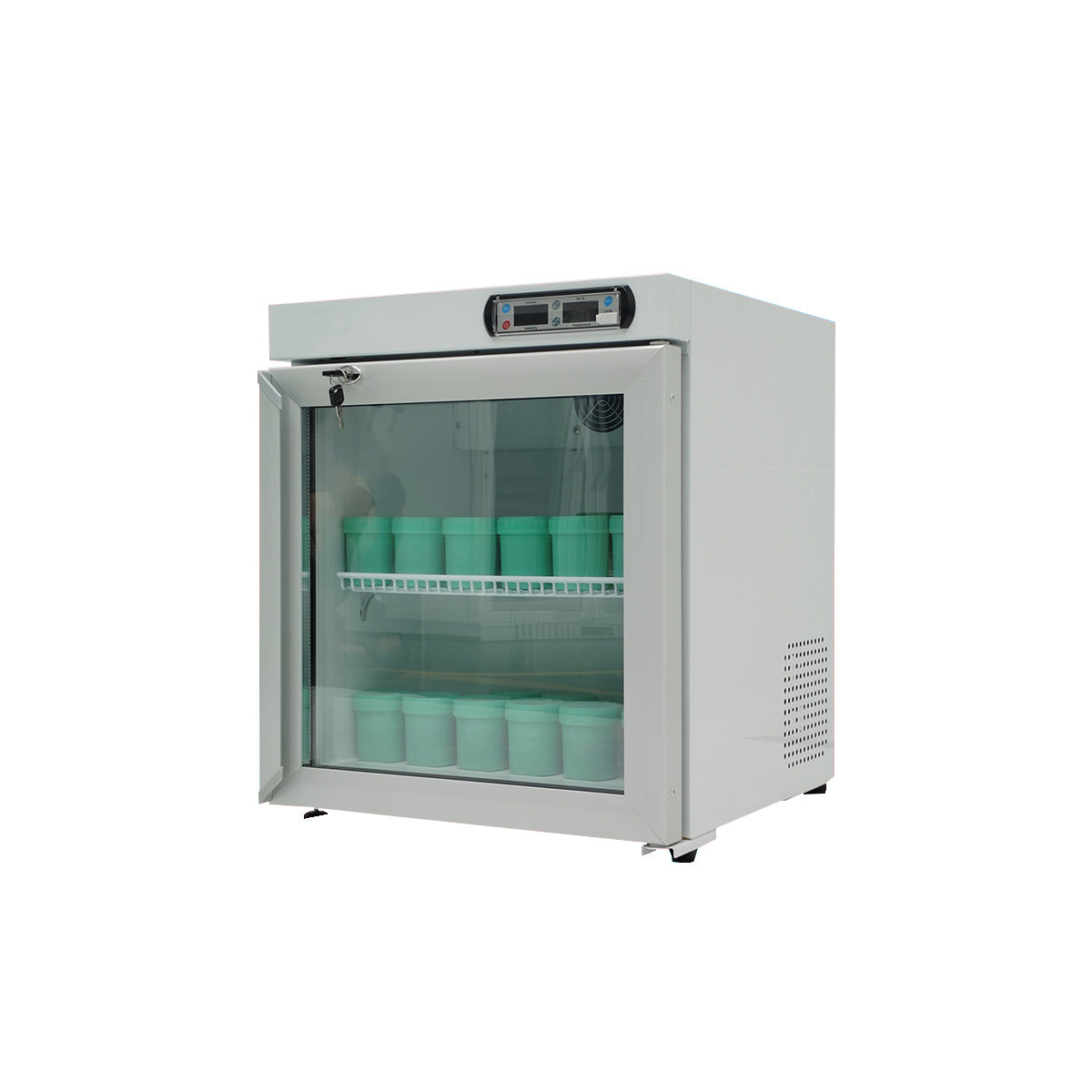

This is a high-efficiency, energy-saving refrigerator specifically designed for solder paste storage. It ensures precise temperature control within the optimal range of 0–10°C, effectively preserving the quality and shelf life of solder paste. Built with advanced insulation technology and a quiet compressor, this unit offers whisper-quiet operation, making it ideal for cleanrooms, laboratories, and electronics manufacturing environments. The internal layout is optimized for convenient storage and organization, while its compact footprint allows it to fit seamlessly into workspaces with limited room. With low power consumption and consistent cooling performance, this refrigerator not only protects sensitive materials but also supports sustainable, energy-efficient operations. Whether for SMT production lines or R&D labs, it's the perfect solution for maintaining solder paste in peak condition.

• Imported compressor
• Microcomputer control, LCD display
• Automatic defrosting
• Adjustable shelves
• Independent condensing air duct
• Safety door lock
• FIFO (First In First Out) fixture for option

FIFO fixture used for the solder jar size: Diameter 66mm, height 76mm

Attention: To ensure stable operation of the equipment, pls wait 24 hours after receiving the refrigerator before powering it on. (Wait for the lubricant and condensing agent to flow back to the right place)

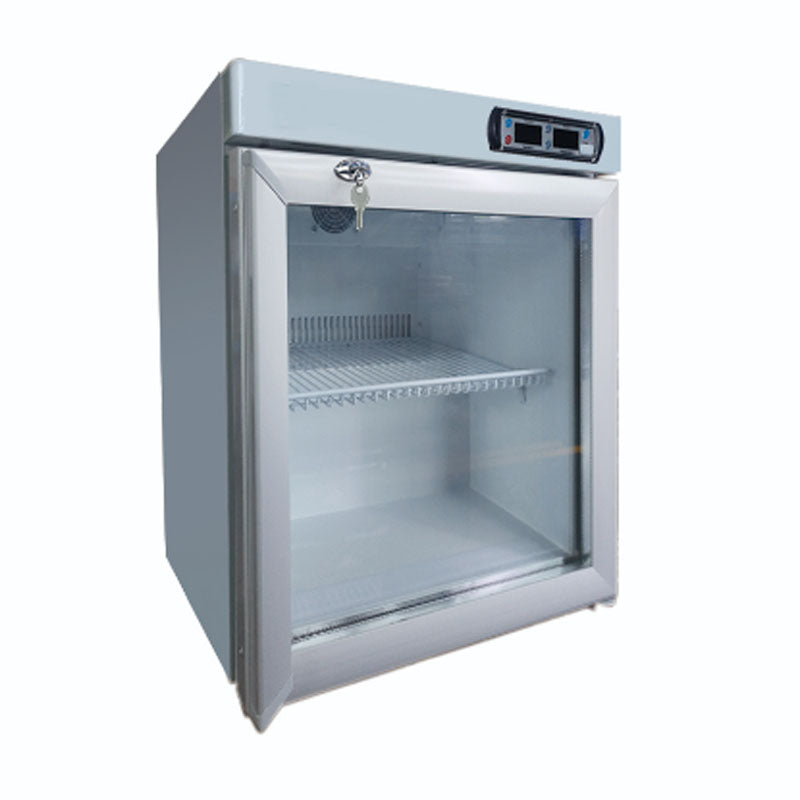

Model: HWX-55A
Volume: 55L
External dimensions: 430*480*640mm
Internal size: 280*380*520mm

Model: HWX-100A
Volume: 100L
External dimensions: 480*480*840mm
Internal size: 410*370*720mm

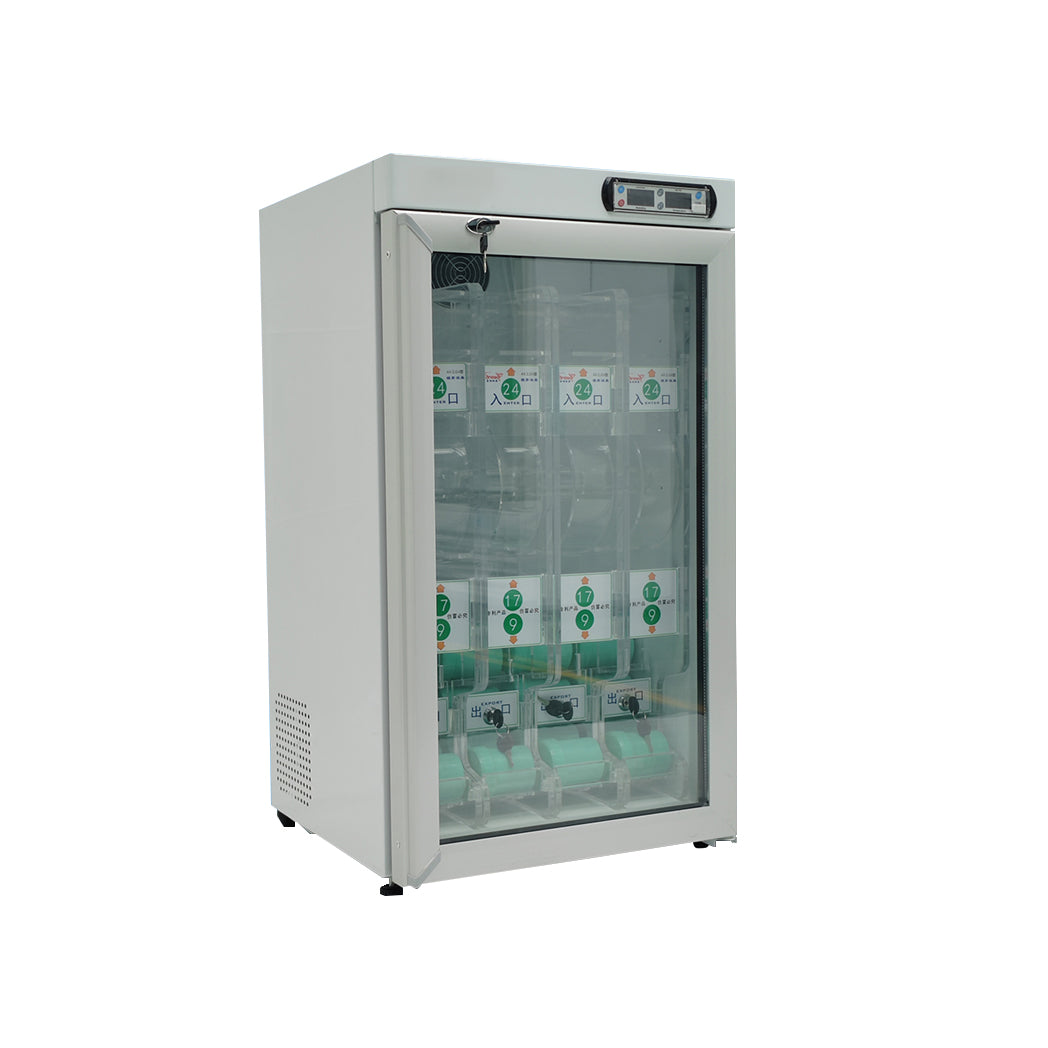

FIFO Fixture(24 jars)
Size: H720*D310*W93mm

FIFO Fixture(16 jars)
Size: H490*D310*W93mm

FIFO Fixture(8 jars)
Size: H260*D310*W93mm

HWX-55A Solder Paste Refrigerator Datasheet

HWX-100A Solder Paste Refrigerator Datasheet
