8 ZONES 1400MM THERMAL CONVECTION REFLOW SOLDERING MACHINE
It used to join electronic components to a PCB printed circuit board. Tunnel structure of automatic conveyor is made up of preheating zones, soldering zones and cooling zones. The heating zones can be controlled separately through PID. Meshwork and chain convey the PCB synchronously and conveyor speed can be controlled by PID. Chain conveyor ensures that on-line connection between reflow oven and other equipment is accessible.

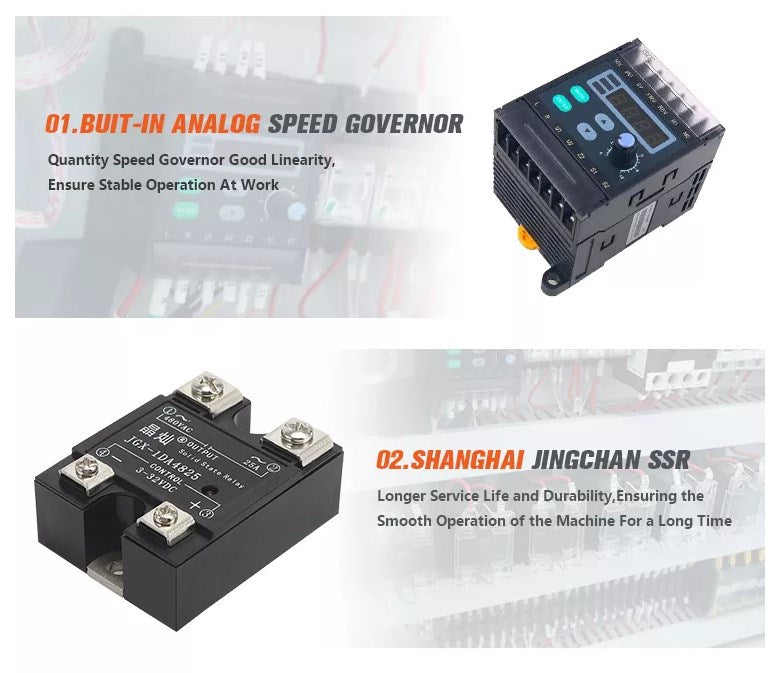

- PID Digital Temperature Control System
- High temperature Lead Free Soldering applications up to 400°C
- Horizontal Convection heating technology
- Stainless steel conveyor
- 1400mm Long Heat Tunnel
- Upper 4 Heating Zones + Bottom 4 Heating Zones
- 350mm wide conveyor with Chain
- Easy lift clamshell design

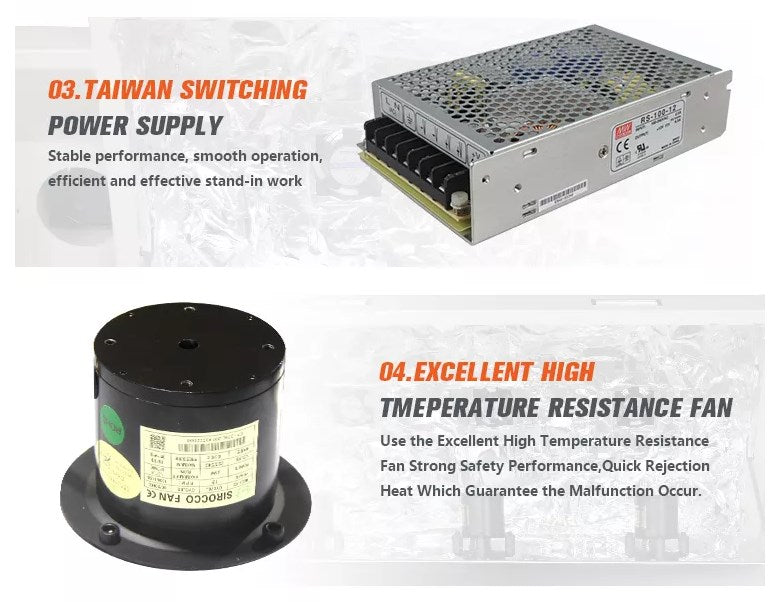

- Heat resistance fan

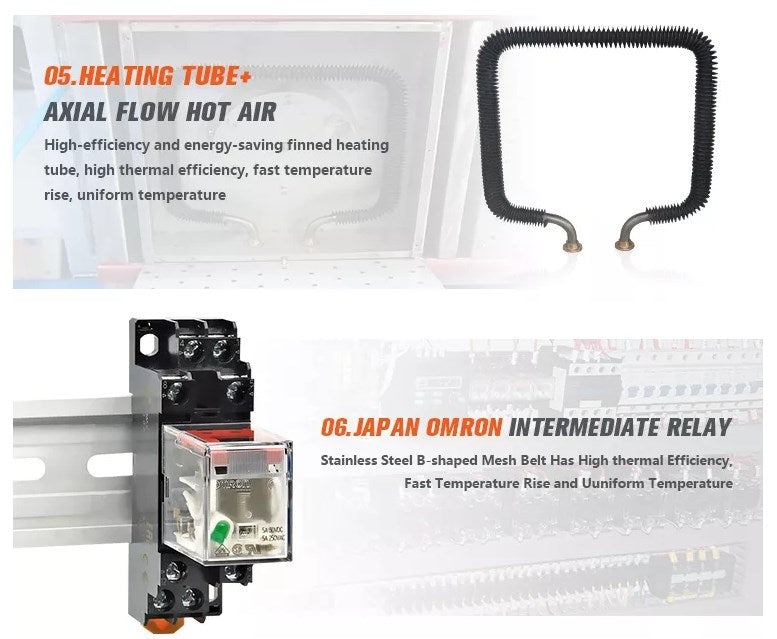

- High-Efficiency and Energy-Saving Heating Tube
For more details, pls check the Specification and Brochure.
8 Heating Zones (upper 4 zone, bottom 4 zone)
Heating method: Hot air
Cooling Zone: 3 Natural Air Cooling
Heat Tunnel length: 1400mm
Conveyor width: 450mm
Rail way width Adjustable Max.: 350mm
PCB width: Max. 350mm
PCB Height Allowance: ≤25mm (Customize Acceptable)
Conveyor Height: 880±20mm
Conveyor Speed: 0-1500mm/min
Conveyor Direction: Left→Right
Preheat Time: 15-20mins
Soldering Time: 3.5-5.5mins
Temperature Range: 0°C-400°C

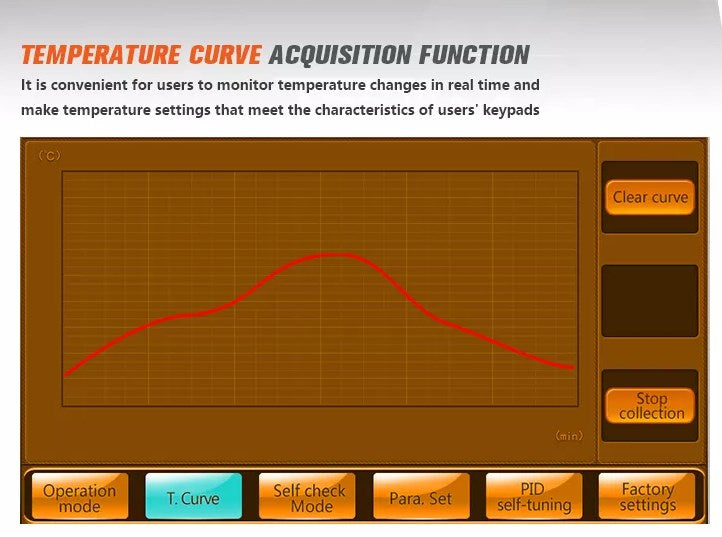

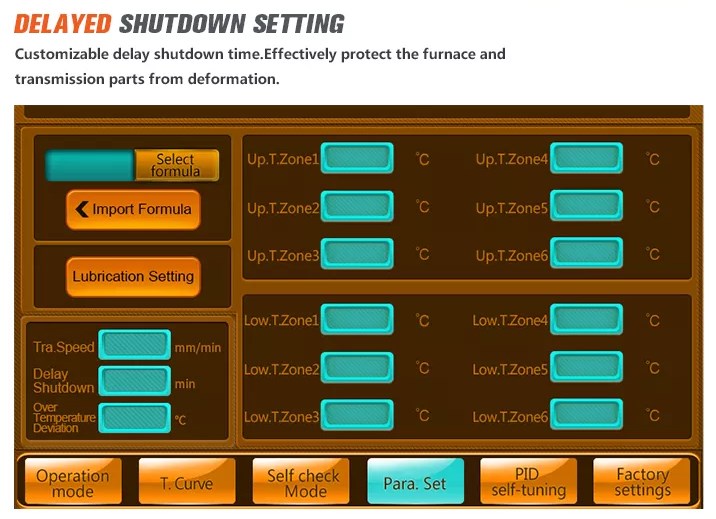

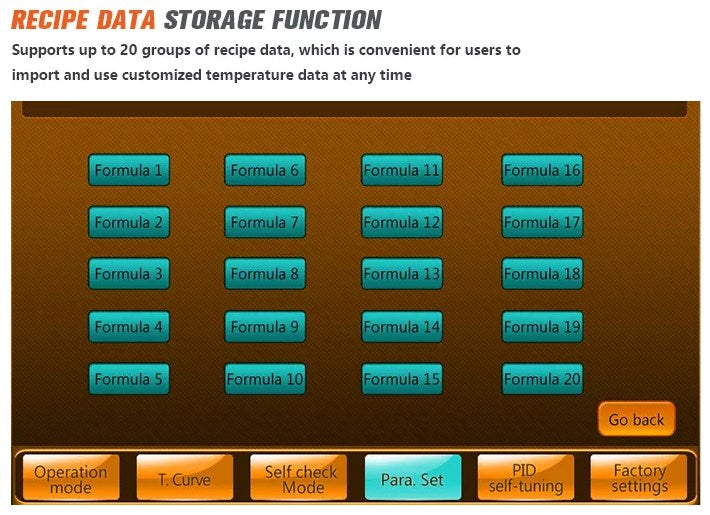

PID Digital Temperature Control System
Starting Power: 15KW
Working Power: 3KW
Net Weight: 445kgs
Gross Weight.: 540kgs
Machine Size: 2720*820*1360mm
Packing Dimension: 283*94*151cm

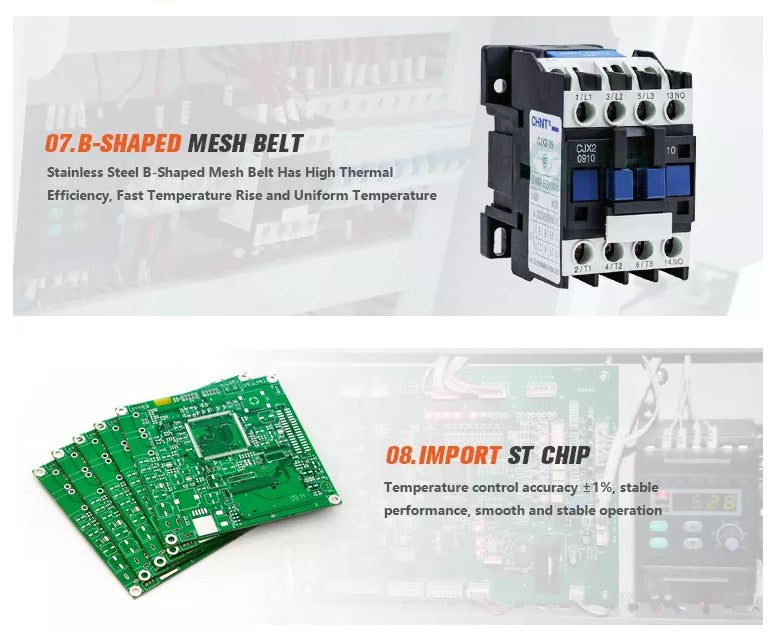

It's suitable for printed circuit boards with SMT components, integrated circuits and discrete components, and is an indispensable special equipment in the production line of automatic soldering in SMT surface assembly process.
AUTOMATIC DRIP OIL CUP

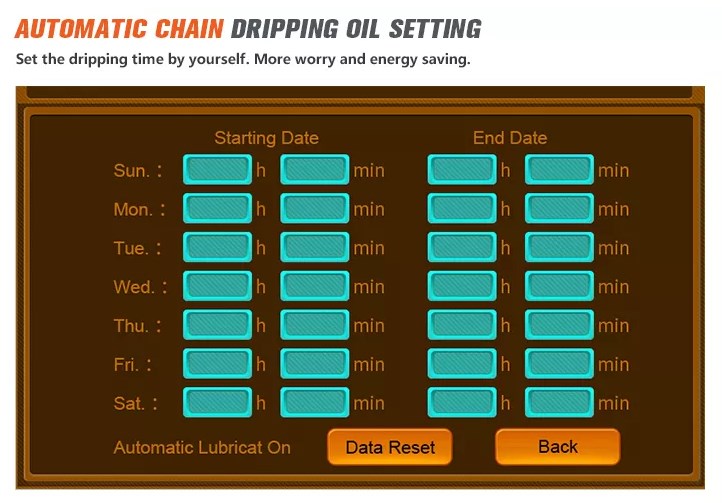

Each rail is equipped with an oil cup. Oil volume and time controllable.
CONVEYOR WITH CHAIN
It can be connected with PCB loader and unloader and conveyor to achieve the overall automatic production.
