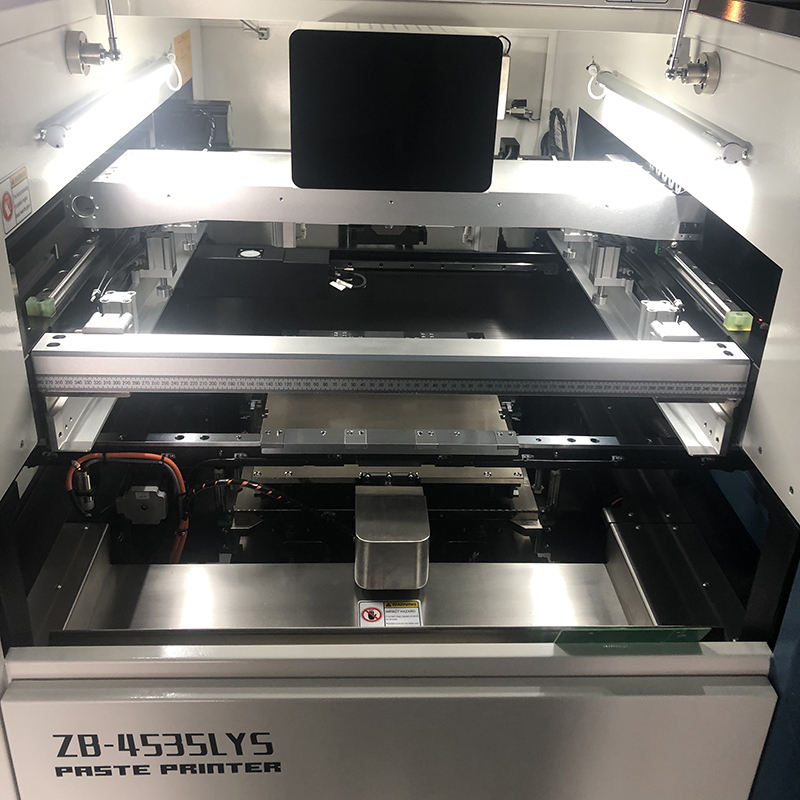

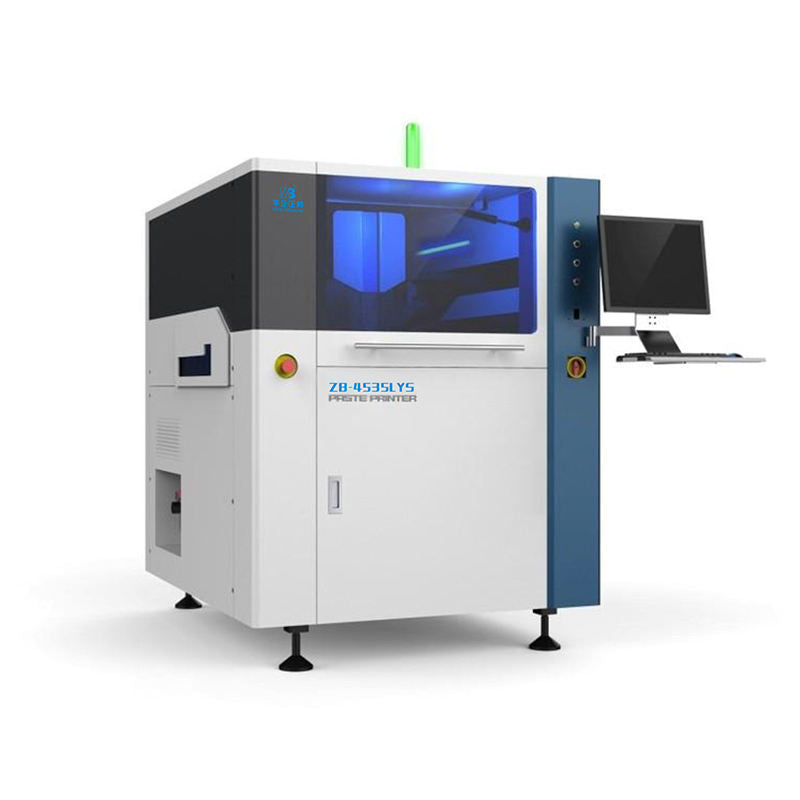

Automatic PCB Stenicl Printer for SMT Assembly Line



Solder paste printer is not just a link in the SMT production line, but a key equipment that determines product quality, production efficiency and reliability. The quality of solder paste printing directly determines the reliability of soldering, so it is very important to choose a high precision PCB printing machine.

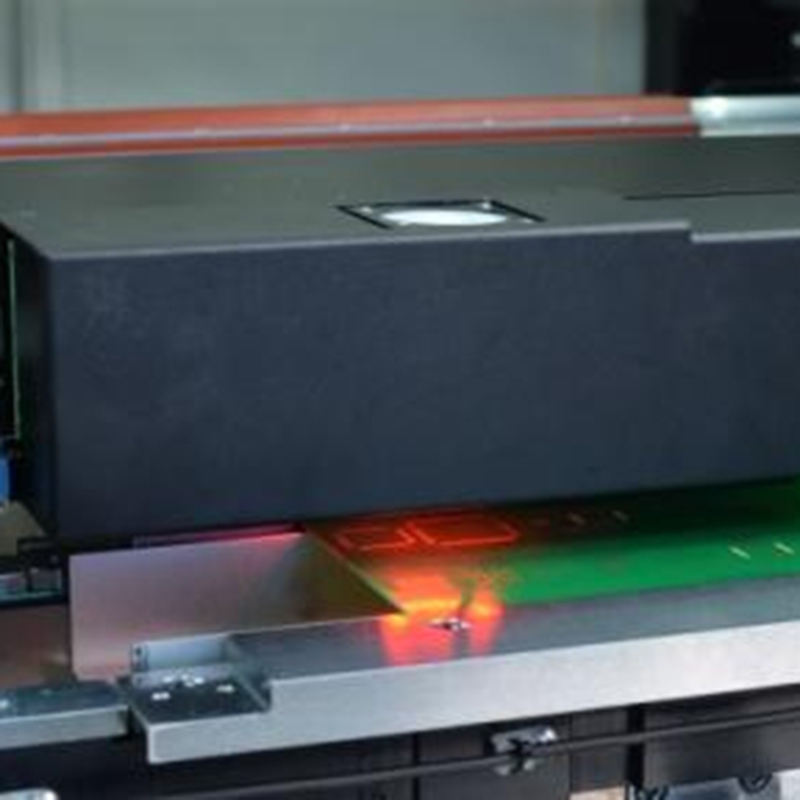

ZB4535LYS adapt advanced upward/downward vision system, independently controlled and adjusted lighting, high-speed moving lens, precise alignment of PCB and template, ensuring printing accuracy of ±0.025mm. Unlimited image pattern recognition technology has ±0.01mm repeat positioning accuracy. Suspended printing head, with specially designed high-rigidity structure, scraper pressure, speed, stroke are all controlled by computer intelligence to maintain uniform and stable printing quality; scraper beam is specially optimized structural design, light and beautiful appearance. Multifunctional board handling device, can automatically position and clamp PCB boards of various sizes and thicknesses, with movable magnetic ejector pins and vacuum platform and vacuum chamber, effectively overcome board deformation and ensure uniform printing.

Standard Features:

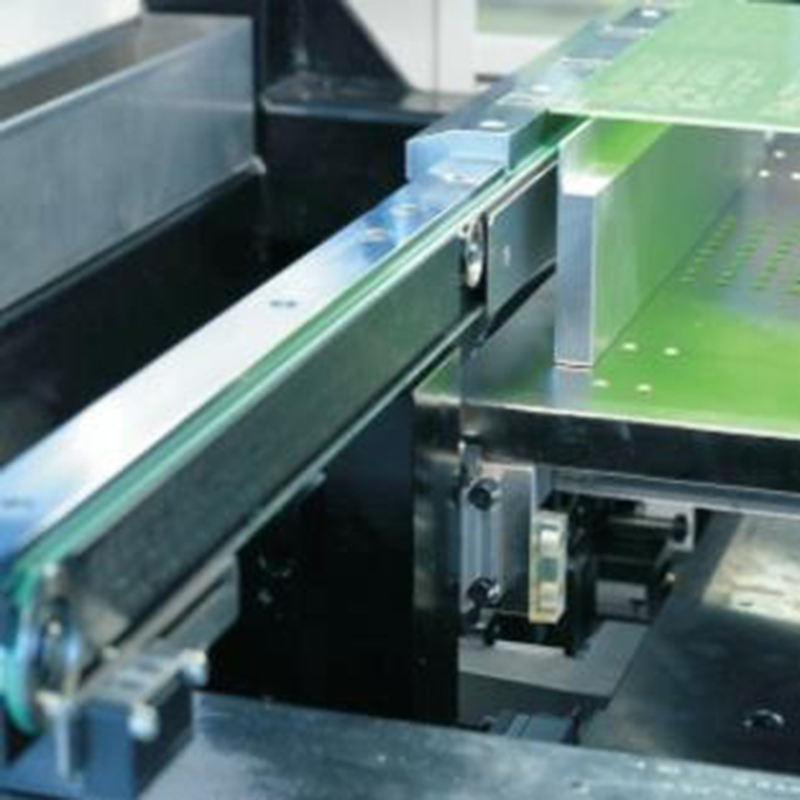

  • Automatic rail width adjustment
  • Online PCB board counting
  • Automatic positioning of the stencil
  • Return to zero automatically
  • Automatically measure the height of the scraper
  • Visual system identification, alignment of the stencil and PCB board
  • Stencil and PCB board can clamp automatically
  • Automatic cleaning of the stencil
  • Automatic inspect the I/O fault and sound-light alarm and indicate the reason of the fault
  • Support single and double sided PCB
  • 2D inspection and SPC system
  • PCB thickness self-adaption

Option Features:

  • Automatic solder paste filling
  • Automatic glue dispensing
  • Detection of stencil plugging
  • Magnetic squeegee
  • Vacuum suction plate
  • Support MES system sealmess docking
  • SPI online

For more details, pls check the brochure and manual
